FAQ: Specifications Mainboard "ECS B550A4-EM 3X00".

[#1]

FAQs about the mainboard ECS B550A4-EM 3X00

MSN 20067068

• Which processors (CPUs) can be used?

• Processors from the Ryzen 3000 series can be installed.

• What is the maximum amount of working memory (RAM) that can be installed ?

• There are 2 memory slots on the mainboard each with 16 GB RAM. The maximum capacity is therefore 32 GB.

  Module:	288-Pin DIMM
  Type:	SDRAM-DDR4
  Speed:	2666 MHz
  Voltage:	1.2 V
  Feature:	no ECC Support

  Please note that in the 32-bit editions of Windows operating systems a maximum of about 3.2 GB memory is detected.You can find more information about this on the Microsoft website.

• Which M.2 cards can be used?

• Slot	Interface	Dimensions	Key(s)	Hints
  1	PCIe oder SATA	2260, 2280	B key & M key
  2		2230	E key	WLAN only

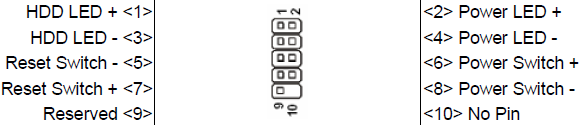

• What is the front pin assignment for the mainboard?

• The front pin assignment can be seen in the figure.



---

The information in this article refers to:

• ERAZER Engineer E10 (MD 34004) MSN 10023466
• ERAZER Engineer E10 (MD 34698) MSN 10023473
• ERAZER Engineer P10 (MD 34651) MSN 10023374
• ERAZER Engineer P10 (MD 34701) MSN 10023475
• ERAZER Engineer P10 (MD 34833) MSN 10023635
• ERAZER Engineer P10 (MD 34858) MSN 10023664
• ERAZER Engineer X10 (MD 34652) MSN 10023375
• ERAZER Engineer X10 (MD 34653) MSN 10023376
• ERAZER Engineer X10 (MD 34788) MSN 10023562
• ERAZER Engineer X10 (MD 34828) MSN 10023632

• ERAZER Engineer X10 (MD 34857) MSN 10023665
• ERAZER Engineer X10 (MD 34859) MSN 10023663
• ERAZER Recon E10 (MD 34906) MSN 10023718
• ERAZER Surgeon P10 (MD 34831) MSN 10023636
• ERAZER X57002 E (MD 34577) MSN 10023276
• MEDION AKOYA E32006 (MD 34260) MSN 10023416
• MEDION AKOYA E32006 (MD 34260) MSN 10023753
• MEDION AKOYA E32007 (MD 34742) MSN 10023538
• MEDION AKOYA E32008 (MD 34741) MSN 10023539
• MEDION AKOYA E32009 (MD 34836) MSN 10023627

• MEDION AKOYA E32010 (MD 34851) MSN 10023657
• MEDION AKOYA E33002 (MD 34649) MSN 10023373
• MEDION AKOYA E33003 (MD 34849) MSN 10023656
• MEDION AKOYA E33004 (MD 34852) MSN 10023658
• MEDION AKOYA E33006 (MD 34904) MSN 10023719
• MEDION AKOYA E36002 (MD 34744) MSN 10023556
• MEDION AKOYA E42019 (MD 34280) MSN 10023639
• MEDION AKOYA E42019 (MD 34280) MSN 10023653
• MEDION AKOYA E42019 (MD 34280) MSN 10023654
• MEDION AKOYA E42019 (MD 34280) MSN 10023662

• MEDION AKOYA E42020 (MD 34861) MSN 10023671
• MEDION AKOYA E52001 (MD 34693) MSN 10023471
• MEDION AKOYA E52002 (MD 34002) MSN 10023459
• MEDION AKOYA E53006 (MD 34692) MSN 10023470
• MEDION AKOYA E56000 (MD 34687) MSN 10023465
• MEDION AKOYA E57001 (MD 34664) MSN 10023368
• MEDION AKOYA P33001 (MD 34837) MSN 10023628

Review Date: 2021-09-21
