FAQ: Specifications Mainboard "ECS B550A4-EM 3X00".

[#1]

FAQs about the mainboard ECS B550A4-EM 3X00

MSN 20067068

• Which processors (CPUs) can be used?

• Processors from the Ryzen 3000 series can be installed.

• What is the maximum amount of working memory (RAM) that can be installed ?

• There are 2 memory slots on the mainboard each with 16 GB RAM. The maximum capacity is therefore 32 GB.

  Module:	288-Pin DIMM
  Type:	SDRAM-DDR4
  Speed:	2666 MHz
  Voltage:	1.2 V
  Feature:	no ECC Support

  ⚠️Note⚠️ In the 32-bit editions of Windows operating systems a maximum of about 3.2 GB memory is detected.You can find more information about this on the Microsoft website.

• Which M.2 cards can be used and where can I find the slot?

• Slot	Interface	Dimensions	Key(s)	Hints
  1	PCIe oder SATA	2260, 2280	B key & M key
  2		2230	E key	WLAN only


  ⚠️Note⚠️ The M.2 slot is covered by the graphics card. This must therefore first be removed in order to install an M.2 SSD.

  You will need a screw with a metric M2 thread and a length between 2.5 mm and 3.0 mm. The head should have a diameter of 4 mm to a maximum of 5 mm. If the screws are not available in local specialist shops, you can find them in online shops.

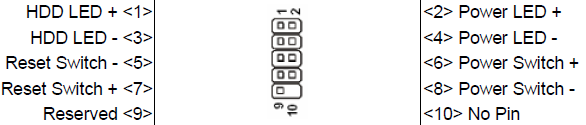

• What is the front pin assignment for the mainboard?

• The front pin assignment can be seen in the figure.



---

The information in this article refers to:

• MEDION AKOYA E52002 MD 34002 MSN 10023459

• MEDION ERAZER Engineer E10 MD 34004 MSN 10023466

• MEDION AKOYA E32006 MD 34260 MSN 10023416
• MEDION AKOYA E32006 MD 34260 MSN 10023753

• MEDION AKOYA E42019 MD 34280 MSN 10023639
• MEDION AKOYA E42019 MD 34280 MSN 10023653
• MEDION AKOYA E42019 MD 34280 MSN 10023654
• MEDION AKOYA E42019 MD 34280 MSN 10023662
• MEDION AKOYA E42019 MD 34280 MSN 10023982

• MEDION ERAZER X57002 MD 34577 MSN 10023276

• MEDION AKOYA E33002 MD 34649 MSN 10023373
• MEDION AKOYA E33002 MD 34649 MSN 10024103

• MEDION ERAZER Engineer P10 MD 34651 MSN 10023374

• MEDION ERAZER Engineer X10 MD 34652 MSN 10023375

• MEDION ERAZER Engineer X10 MD 34653 MSN 10023376

• MEDION AKOYA E56002 MD 34661 MSN 10023420

• MEDION AKOYA E57001 MD 34664 MSN 10023368
• MEDION AKOYA E57001 MD 34664 MSN 10023770

• MEDION AKOYA E56000 MD 34687 MSN 10023465
• MEDION AKOYA E56000 MD 34687 MSN 10024383

• MEDION AKOYA E53006 MD 34692 MSN 10023470

• MEDION AKOYA E52001 MD 34693 MSN 10023471

• MEDION ERAZER Engineer E10 MD 34698 MSN 10023473

• MEDION ERAZER Engineer P10 MD 34701 MSN 10023475

• MEDION AKOYA E32008 MD 34741 MSN 10023539
• MEDION AKOYA E32008 MD 34741 MSN 10024121

• MEDION AKOYA E32007 MD 34742 MSN 10023538
• MEDION AKOYA E32007 MD 34742 MSN 10024128

• MEDION AKOYA E36002 MD 34744 MSN 10023556
• MEDION AKOYA E36002 MD 34744 MSN 10024216

• MEDION ERAZER Engineer X10 MD 34788 MSN 10023562

• MEDION ERAZER Engineer X10 MD 34828 MSN 10023632

• MEDION ERAZER Surgeon P10 MD 34831 MSN 10023636

• MEDION ERAZER Engineer P10 MD 34833 MSN 10023635

• MEDION AKOYA E32009 MD 34836 MSN 10023627
• MEDION AKOYA E32009 MD 34836 MSN 10023920

• MEDION AKOYA P33001 MD 34837 MSN 10023628
• MEDION AKOYA P33001 MD 34837 MSN 10023899

• MEDION AKOYA E33003 MD 34849 MSN 10023656
• MEDION AKOYA E33003 MD 34849 MSN 10024727

• MEDION AKOYA E32010 MD 34851 MSN 10023657

• MEDION AKOYA E33004 MD 34852 MSN 10023658

• MEDION ERAZER Engineer X10 MD 34857 MSN 10023665

• MEDION ERAZER Engineer P10 MD 34858 MSN 10023664

• MEDION ERAZER Engineer X10 MD 34859 MSN 10023663

• MEDION AKOYA E42020 MD 34861 MSN 10023671

• MEDION AKOYA E33006 MD 34904 MSN 10023719

• MEDION ERAZER Recon E10 MD 34906 MSN 10023718

• MEDION AKOYA E34001 MD 34926 MSN 10023748

• MEDION AKOYA E33011 MD 35003 MSN 10023971
• MEDION AKOYA E33011 MD 35003 MSN 10024709

• MEDION AKOYA E32015 MD 35067 MSN 10024078
