FAQ: Specifications Mainboard "ECS B550A4-EM 2X00".

FAQs about the mainboard ECS B550A4-EM 2X00

MSN 20066891

  • Which processors (CPUs) can be used?

  • Processors from the Ryzen 2000 Series can be installed.

  • What is the maximum amount of working memory (RAM) that can be installed?

  • There are 2 memory slots on the mainboard each with 16 GB RAM. The maximum capacity is therefore 32 GB.



    Module: 288-Pin DIMM
    Type: SDRAM-DDR4
    Speed: 2666 MHz
    Voltage: 1.2 V
    Feature: no ECC Support



    Please note that in the 32-bit editions of Windows operating systems a maximum of about 3.2 GB memory is detected.You can find more information about this on the Microsoft website.
  • Which M.2 cards can be used?

  • Slot Interface Dimensions Key(s) Hints
    1 PCIe oder SATA 2260, 2280 B key & M key
    2   2230 E key WLAN only

    For the fastening you need a screw with a metric M2 thread and a length between 2.5 mm and 3.0 mm. The head should have a diameter of 4 mm to a maximum of 5 mm. If the screws are not available in your local specialist shop, you can find them in online shops.
  • What is the front pin assignment for the mainboard?

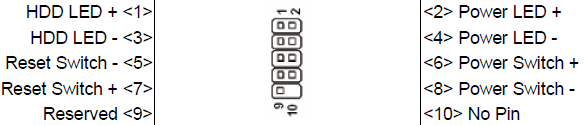

  • The front pin assignment can be seen in the figure.
