FAQ: Specifications Mainboard "Asus PRIME A320I-K".

FAQs about the mainboard Asus PRIME A320I-K

MSN 20067819

  • Which processors (CPUs) can be used?

  • AMD Ryzen first Generation
    AMD Ryzen second Generation
    AMD Ryzen with Radeon Vega GPU
    AMD Athlon with Radeon Vega GPU
    AMD 7. Generation A-Serie
    AMD Athlon X4 CPUs
  • What is the maximum amount of working memory(RAM) that can be installed?

  • There are 4 memory slots on the mainboard each with 32 GB RAM. The maximum capacity is therefore 128 GB.



    Module: 288-Pin DIMM
    Type: SDRAM DDR4
    Speed: AMD Ryzen second Generation
      3600 (OC), 3466 (OC), 3400 (OC), 3200 (OC), 3000 (OC), 2933 (OC), 2800 (OC), 2666, 2400, 2133 MHz
    Speed: AMD Ryzen with Radeon Vega GPU / AMD Ryzen first Generation
      3400 (OC), 3200 (OC), 3000 (OC), 2933 (OC), 2800 (OC), 2666, 2400, 2133 MHz
    Speed: AMD 7. Generation A-Serie / AMD Athlon CPUs
      2400, 2133 MHz
    Voltage: 1.2 V
    Feature: no ECC Support



    Please note that in the 32-bit editions of Windows operating systems a maximum of about 3.2 GB memory is detected.You can find more information about this on the Microsoft website.

  • Which M.2 cards can be used?

  • Slot Interface Dimensions Key(s) Note
    1 SATA, PCIe 3.0 x4 1 2242, 2260, 2280 M key M.2 Combination cards with B and M key can be used

    1PCIe 3.0 x4 is supported by the following processors: AMD Ryzen second Generation / AMD Ryzen with Radeon Vega GPU / AMD Ryzen first Generation

    For the fastening you need a screw with a metric M2 thread and a length between 2.5 mm and 3.0 mm. The head should have a diameter of 4 mm to a maximum of 5 mm and be flat. If the screws are not available in local shops, you can find them in online shops.

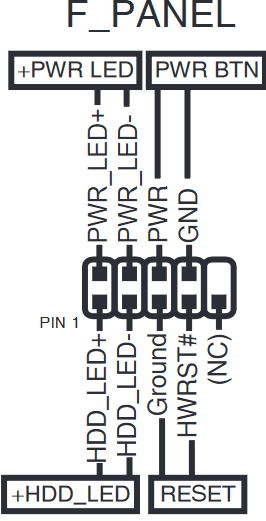

  • What is the front pin assignment for the mainboard?

  • ASUS_PRIME_A320I-K_Frontpanel.png

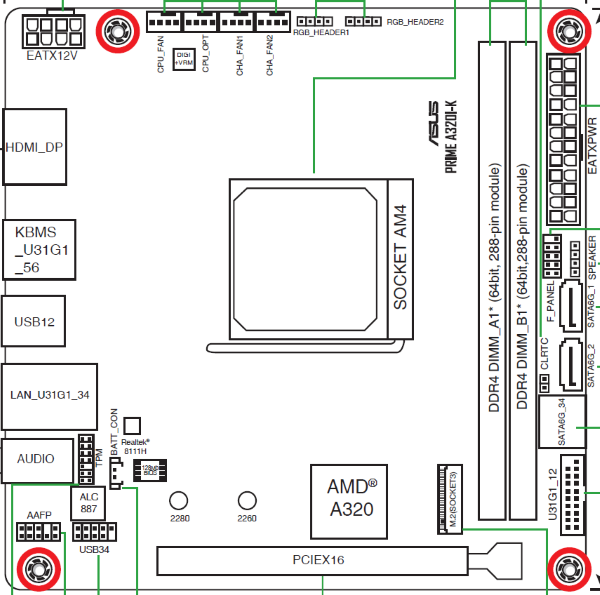

  • Overview of the onboard components

  • ASUS_PRIME_A320I-K_Overview.png

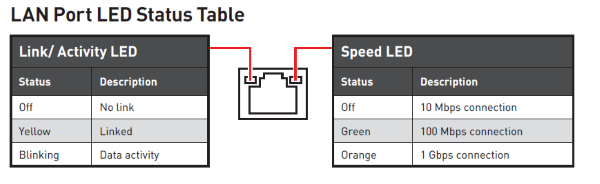

  • LAN Port LED Status

  • MSI_B550_LAN_LEDs.png

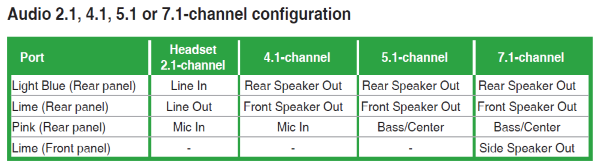

  • Assignment of the audio ports (rear)

  • ASUS_PRIME_A320I-K_Audio_Ports.png
