FAQ: Specifications Mainboard "MSI B360I Gaming Pro AC".

FAQs about the mainboard MSI B360I Gaming Pro AC

MSN 20065901

  • Which processors (CPUs) can be used?

  • Intel CPUs of the 8 generation (Coffee Lake) and Pentium Gold / Celerons for the LGA 1151 socket

  • What is the maximum amount of working memory(RAM) that can be installed ?

  • There are 2 memory slots on the mainboard each with 16 GB RAM. The maximum capacity is therefore 32 GB.



    Module: 288-Pin Dimm
    Type: SDRAM DDR4
    Speed: 2666/2400/2133 MHz
    Voltage: 1,2 V
    Feature: no ECC Support



    Please note that in the 32-bit editions of Windows operating systems a maximum of about 3.2 GB memory is detected.You can find more information about this on the Microsoft website.

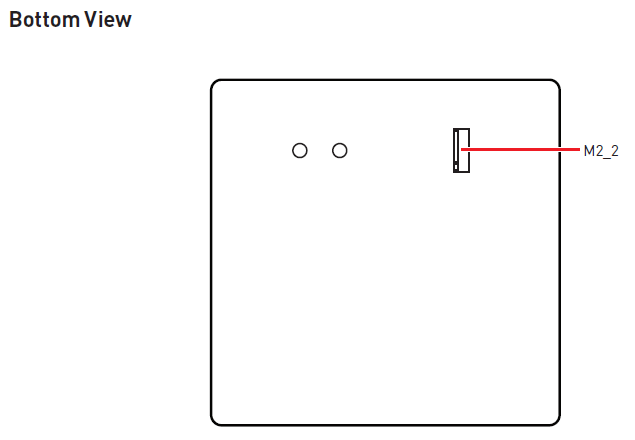

  • Which M.2 cards can be used?

  • Slot Interface Dimensions Key(s) Hints
    1 PCIe 3.0 x4 und SATA 2260, 2280
    2 PCIe 3.0 x4 2260, 2280   Optane ready

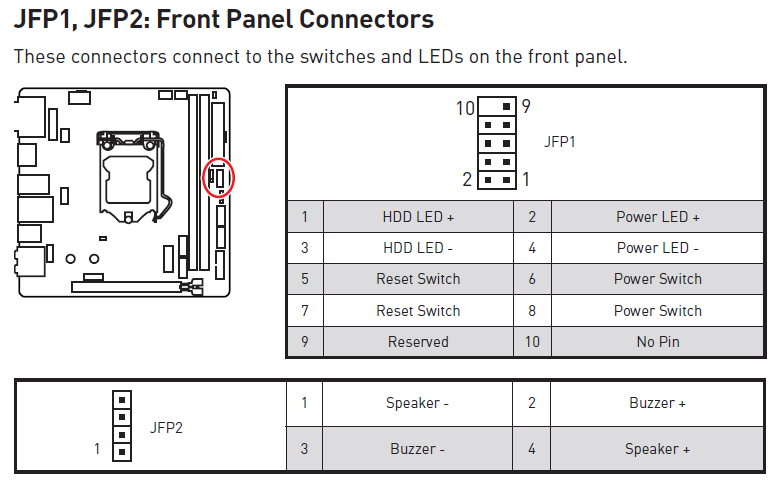

  • What is the front pin assignment for the mainboard?

  • The front pin assignment can be seen in the figure.


  • Overview of the onboard components

  • OverviewOfComponetsTop.png

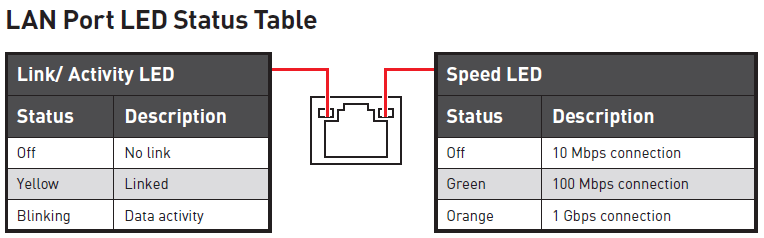

  • LAN Port LED Status

  • LanPortActivity.png

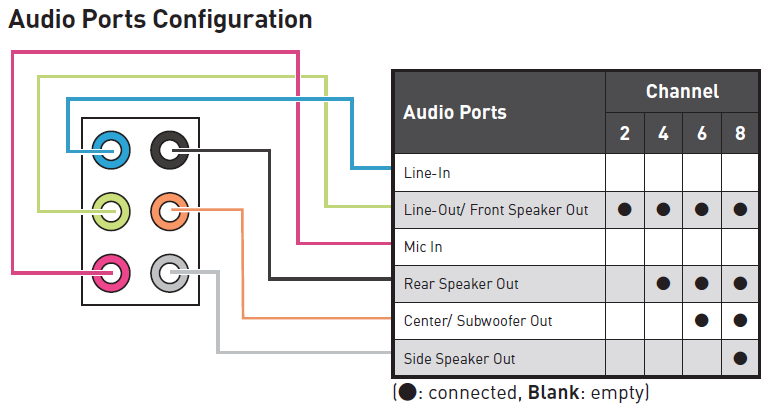

  • Assignment of the audio ports (rear)

  • AudioPortsConfiiguration.png

  • How can I change the LED lighting?

  • MSI provides the app Mystic Light, which can be downloaded from this link.
