FAQ: Specifications Mainboard "MSI Z370 Gaming Pro Carbon"

[#1]

FAQs about the mainboard MSI Z370 Gaming Pro Carbon

MSN 20065088

• Which processors (CPUs) can be used?

• Supports Intel Core processor of the 8th generation (Coffee Lake), Intel Pentium and Celeron processor for socket LGA1151.

• What is the maximum amount of working memory (RAM) that can be installed?

• There are 4 memory slots on the mainboard each with 16 GB RAM. The maximum capacity is therefore 64 GB.

  Modul:	288-Pin DI;;
  Typ:	SDRAM-DDR4
  Takt:	4000+(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC) / 3000(OC) / 2800(OC) / 2667 / 2400 / 2133 MHz
  Voltage:	1,2 V
  Feature:	no ECC Support

  Please note that in the 32-bit editions of Windows operating systems a maximum of about 3.2 GB memory is detected.You can find more information about this on the Microsoft website.

• Which M.2 cards can be used?

• Slot	Interface	Dimensions	Key(s)	Hints
  1	PCIe 3.0 x4, SATA 6Gb/s	2242, 2260, 2280, 22110	M key	Optane Memory Ready
  2	PCIe 3.0 x4, SATA 6Gb/s	2242, 2260, 2280	M key	Optane Memory Ready
  3		2242	E key	WLAN only

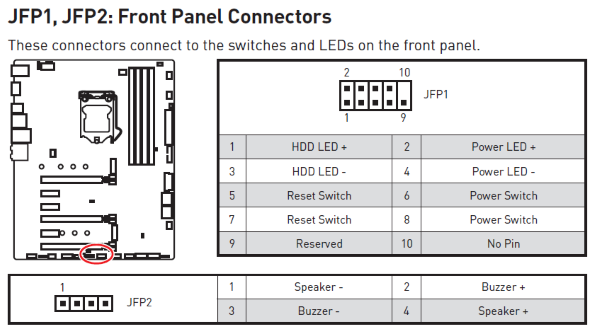

• What is the front pin assignment for the mainboard?

•

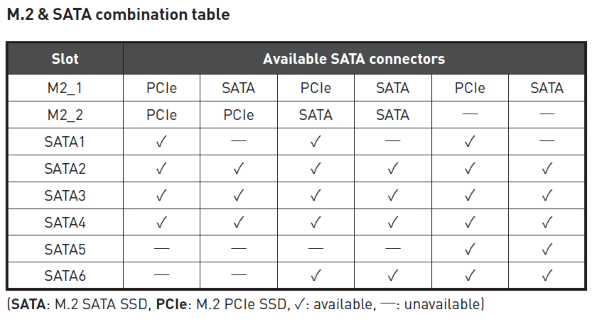

• Which SATA ports can be used after M.2 installation?

•

• Overview of the onboard components

•

• LAN Port LED States

•

• Assignment of the audio ports (rear)

•

• Does the board support multi GPU?

• The mainboard supports the following multi GPU configurations:
  • 2-Way NVIDIA® SLI™ Technology
  • 3-Way AMD® CrossFire™ Technology

---

The information in this article refers to:

• ERAZER X67029 (MD 34129) MSN 10022615
• MEDION ERAZER X67027 (MD 34126) MSN 10022299
• MEDION ERAZER X67028 (MD 34133) MSN 10022300
• MEDION ERAZER X67029 (MD 34129) / C679 MSN 10022254
• MEDION ERAZER X67031 (MD 34131) / C680 MSN 10022255
• MEDION ERAZER X67036 (MD 34146) / C692 MSN 10022329
• MEDION ERAZER X67045 (MD 34181) / C725 MSN 10022417
• MEDION ERAZER X67062 (MD 34236) / C773 MSN 10022538

• MEDION ERAZER X67066 (MD 34246) / C782 MSN 10022605
• MEDION ERAZER X67067 (MD 34247) / C783 MSN 10022606
• MEDION ERAZER X67074 (MD 34299) / C828 MSN 10022701
• MEDION ERAZER X67075 (MD 34301) / C829 MSN 10022702
• MEDION ERAZER X67077 (MD 34279) / C811 MSN 10022681
• MEDION ERAZER X87007 (MD 34276) / C808 MSN 10022678
• MEDION ERAZER X87008 (MD 34277) / C809 MSN 10022679

Review Date: 2022-04-19
