FAQ: Specifications Mainboard "MS-X299 Pro Gaming Carbon".

FAQs about the mainboard MS-X299 Pro Gaming Carbon

MSN 20064583, 20064874

  • Which processors (CPUs) can be used?

  • Supports Intel Core X-Serie processors for LGA2066 Socket.

  • What is the maximum amount of working memory (RAM) that can be installed?

  • There are 8 memory slots on the mainboard, each of which can hold 16 GB of RAM. The maximum capacity is therefore 128 GB.


    Module: 288-Pin DIMM
    Type: SDRAM DDR4
    Clocking: 4500(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz
    Voltage: 1,2V
    Special features: no ECC-support


    ⚠️Note⚠️ In the 32-bit editions of Windows operating systems, a maximum of approx. 3.2 GB memory is recognised. You can find more information on this on the Microsoft website.

  • Which M.2 cards can be used?

  • Slot Connection Dimensions Key(s) Comment
    1 PCIe / SATA 2242, 2260, 2280 M key RAID 0 and RAID 1
    2 PCIe / SATA 2242, 2260, 2280, 22110 M key RAID 0 and RAID 1


    ⚠️Note⚠️ For the fastening you need a screw with a metric M2 thread and a length between 2.5 mm and 3.0 mm. The head should have a diameter of 4 mm to a maximum of 5 mm. If the screws are not available in local shops, you can find them in online shops.

  • What is the front pin assignment for the mainboard?

  • The front PIN assignment can be taken from the illustration.

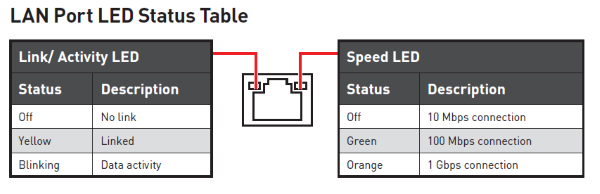

  • LAN Port LED Status

  • LAN-Port-LED-Status_MSI_Z370.png
