FAQ: Specifications Mainboard "ECS B360H4-EM"

FAQs about the ECS B360H4-EM mainboard

MSN 20064668

  • Which processors (CPUs) can be used?

  • The following Intel processors can be installed on socket 1151 up to max. 95 W TDP:

    • Skylake processors (6th generation)
    • Kaby Lake processors (7th generation)
    • Coffee Lake processors (8th generation)
    • Coffee Lake Refresh processors (9th generation)

  • What is the maximum amount of RAM that can be installed?

  • There are 2 memory slots on the mainboard, each of which can hold 16 GB of RAM. The maximum capacity is therefore 32 GB.



    Module: 288-Pin DIMM
    Type: SDRAM-DDR4
    Tact: 2666 MHz
    Voltage: 1,2 V
    Special feature: No ECC support



    ⚠️Note⚠️ Please note that in the 32-bit editions of Windows operating systems, a maximum of approx. 3.2 GB of memory is recognised. You can find more information on this on the Microsoft website.

  • Which M.2 cards can be used?

  • Slot      Connection     Dimensions       Key(s)        Comment
    1 SATA 2260, 2280 B Key
    2 PCIe 2260, 2280 M Key Optane Ready
    3   2230 E Key only WLAN



    ⚠️Note⚠️ You will need a screw with a metric M2 thread and a length of between 2.5 mm and 3.0 mm for fastening. The head should have a diameter of 4 mm to a maximum of 5 mm. If the screws are not available from your local specialist retailer, you can find them online.

  • What is the front PIN assignment for the mainboard?

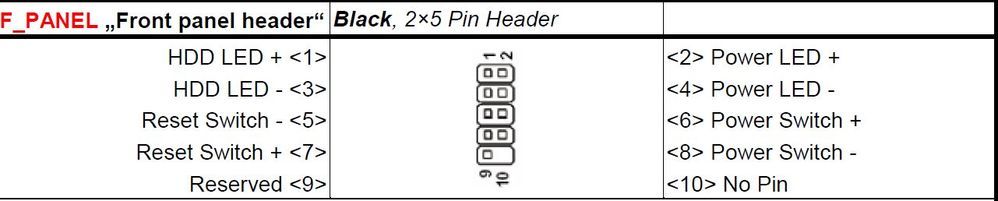

  • The front PIN assignment can be seen in the illustration.
