You can put a NVME.M2 on motherboard H81H3-TI?

SOLVED
7 REPLIES 7
Zairayluna
New Voice
Message 1 of 8
2,873 Views
Message 1 of 8
2,873 Views

You can put a NVME.M2 on motherboard H81H3-TI?

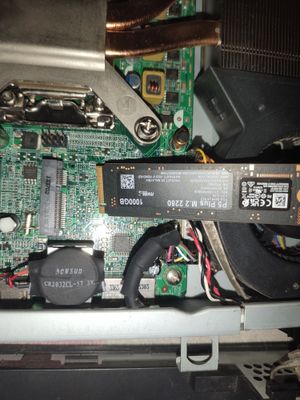

Hello, very good I have a motherboard  H81H3-TI and I would like to know if I could put a NVME. M2 de mark CRUCIAL in it PCIE_FMC1. By the way, this text was translated by a translator since my native language is Spanish.IMG_20230814_222308.jpg


1 ACCEPTED SOLUTION

Accepted Solutions
Fishtown
Superuser
Message 7 of 8
2,817 Views
Message 7 of 8
2,817 Views

hello @Zairayluna

you can use your M.2 SSD PCIe P5 Plus with an adapter/ example: https://www.amazon.de/Enclosure-Lemorele-Thunderbolt-Festplattengeh%C3%A4use-Compatible/dp/B08TWWQ9Z...

on any computer with a USB interface (note the version).



as far as your actual msata interface and its adapter are concerned, there are msata cards for this, however, these are relatively expensive and small in terms of memory and their maximum speed. 500MB/s
I think you are better off with an external adapter for the PCIe P5.

bye Fishtown

I found this adapter. Unfortunately, I can't answer whether it works and whether your chipset supports it at all

https://www.amazon.de/PCIE-Adapterkarte-NVME-SSD-zu-Mini-PCIe-SSD-Konverter-Unterst%C3%BCtzung-SSD-M...

--------------------------------------------------------------------------------------------------------------------------------------------------------
Alles was man lange genug, konsequent mit System durchführt, führt zwangsläufig zum Erfolg.

View solution in original post

7 REPLIES 7
Fishtown
Superuser
Message 2 of 8
2,864 Views
Message 2 of 8
2,864 Views

Hola @Zairayluna  y bienvenido

Your pictured M.2 does not fit like this.

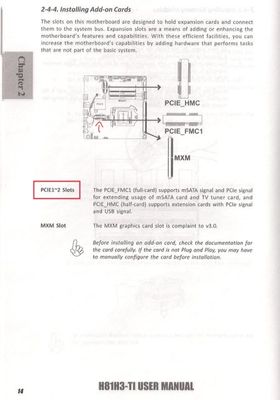

as you showed yourself, only a Mini PCIex1/mSata fits there.
Here you can see where one is already installed. It is one "lite on it corporation"

https://community.medion.com/t5/Desktop-PC-All-In-One/ECS-H81H3-TI-Information/m-p/75500#M188

Why even want to upgrade if you already have a 2TB hard drive? please state your MSN number from the computer

bye Fishtown

example:

https://notebookheaven.de/komponenten/festplatten/m.2-msata/3819/32-gb-msata-ssd-lite-on



--------------------------------------------------------------------------------------------------------------------------------------------------------
Alles was man lange genug, konsequent mit System durchführt, führt zwangsläufig zum Erfolg.
Zairayluna
New Voice
Message 3 of 8
2,859 Views
Message 3 of 8
2,859 Views

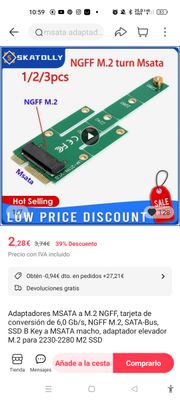

Hello @Fishtown, 😊 Thank you very much for the answer and I already saw that there were some kinds of special pieces to further expand the space of the computer, special for that plug, but I saw that the speed is not as good as an Nvme. M2 and I saw some adapters that I think could be used but I'm not very sure I'm attaching a photo in case you could help me, since I have a 1T hard drive that I would like to use it to store files and get an Nvme. M2 to install programs that need more speed when reading files such as Photoshop and some other video game, by the way, thank you very much for having answered me in the previous comment and with pleasure I send you  here the MSN of my all-in-one MSN: 10020935 Akoya P2011 D AIO C095



 Acabo de encontrar este increíble artículo en AliExpress. ¡Échale un vistazo! 2,28€ 39%de DESCUENTO | Adaptadores MSATA a M.2 NGFF, tarjeta de conversión de 6,0 Gb/s, NGFF M.2, SATA-Bus, SSD B Key a MSATA macho, adaptador elevador M.2 para 2230-2280 M2 SSD


https://a.aliexpress.com/_EIGGDvD


Fishtown
Superuser
Message 4 of 8
2,853 Views
Message 4 of 8
2,853 Views

Hello @Zairayluna
you have two problems,
the adapter is designed for B-key, but your P5 Plus M.2 2280 CT 1000P5pssd8 has an M-key.
so you need another adapter.

the second is the length of 123mm, which you will not be able to accommodate. please measure.

bye Fishtown

--------------------------------------------------------------------------------------------------------------------------------------------------------
Alles was man lange genug, konsequent mit System durchführt, führt zwangsläufig zum Erfolg.
Zairayluna
New Voice
Message 5 of 8
2,834 Views
Message 5 of 8
2,834 Views

Por favor @Fishtown, me podría decir que tipo de adaptador tendría que ser para unir las dos piezas 🙏 es lo que estoy buscando y segundo ya me las apañare con el tamaño, por eso no hay problema.Please @Fishtown, could you show me what kind of adapter it would have to be to join the two pieces 🙏?, it's what I'm looking for and secondly I'll manage with the size. First problem one and then I'll find my life with problem two. But what I can't find is the type of adapter 😊 if you could help me, Mr. Fish, I would be very grateful to you.

Zairayluna
New Voice
Message 6 of 8
2,830 Views
Message 6 of 8
2,830 Views

By the way, in your point of view @Fishtown  in what ways could you get the most out of it? to take advantage of that pc plug? Sorry for asking so much but as I have more computers in my house, I know that if I can't take advantage of the nvme. m2 on my device I can use it on another and mine take advantage of it in another way to have better devices and I like to be well informed with an expert like you😉

Fishtown
Superuser
Message 7 of 8
2,818 Views
Message 7 of 8
2,818 Views

hello @Zairayluna

you can use your M.2 SSD PCIe P5 Plus with an adapter/ example: https://www.amazon.de/Enclosure-Lemorele-Thunderbolt-Festplattengeh%C3%A4use-Compatible/dp/B08TWWQ9Z...

on any computer with a USB interface (note the version).



as far as your actual msata interface and its adapter are concerned, there are msata cards for this, however, these are relatively expensive and small in terms of memory and their maximum speed. 500MB/s
I think you are better off with an external adapter for the PCIe P5.

bye Fishtown

I found this adapter. Unfortunately, I can't answer whether it works and whether your chipset supports it at all

https://www.amazon.de/PCIE-Adapterkarte-NVME-SSD-zu-Mini-PCIe-SSD-Konverter-Unterst%C3%BCtzung-SSD-M...

--------------------------------------------------------------------------------------------------------------------------------------------------------
Alles was man lange genug, konsequent mit System durchführt, führt zwangsläufig zum Erfolg.
Zairayluna
New Voice
Message 8 of 8
2,768 Views
Message 8 of 8
2,768 Views

@Fishtown  THANK YOU VERY MUCH FOR EVERYTHING !!!!!!😍👍🏻
