Hi all

I just purchased this board which I understand was once part of a Medion AIO PC, having trouble finding support, hope I've come to the right place!

Cheers

Chris

[macminn]

Hi all

I just purchased this board which I understand was once part of a Medion AIO PC, having trouble finding support, hope I've come to the right place!

Cheers

Chris

[Luke · Accepted solution]

Hi @macminn,

we finally found the relevant unit:

MEDION AKOYA P2021 D AIO EU
MSN:	10018813
Vertriebsland:	EU
Hauptmerkmal:	All-in-One PC 23,6" PC System 8940 EU (MB ECS H81H3-TI) AIO9

Now go to our website https://www.medion.com/de/service/start/_product.php

and fill in the MSN 10018813, then click on "Treiber". That`s it.

*Uff*   :-)

Luke

[Luke]

Hi @macminn,

We know that this board has been used in certain AIO-PCs, but we need the specific MSN number of this unit which should be printed on a label located on the back of the board...   so please have a look and/or take a photo of the label. The more info, the better...

Cheers,

Luke

[macminn]

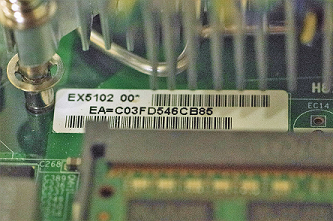

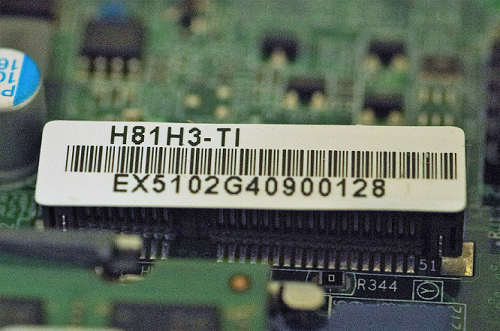

Thanks Luke! No labels on back but a couple on front...please see attached.

[Luke]

Hi @macminn,

I´m afraid that won`t do as none of these labels are related to a MEDION AIO-PC or any other

of our hardware.

Plan B:

I´ve played around with googling for your board`s type designation  and found several useful links which I can`t

publish here for obvious reasons.

Hope this helps,

Luke

[macminn]

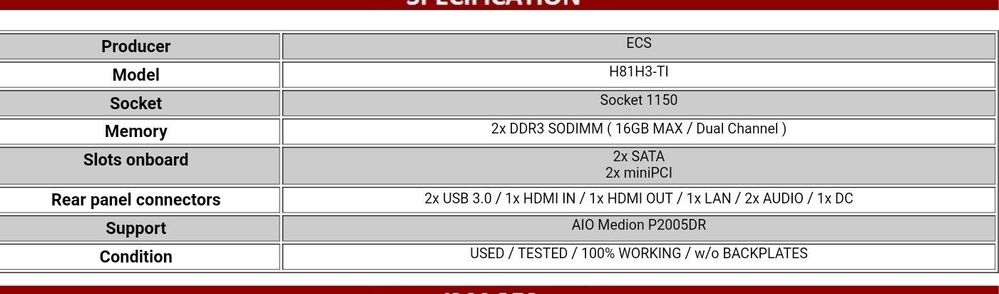

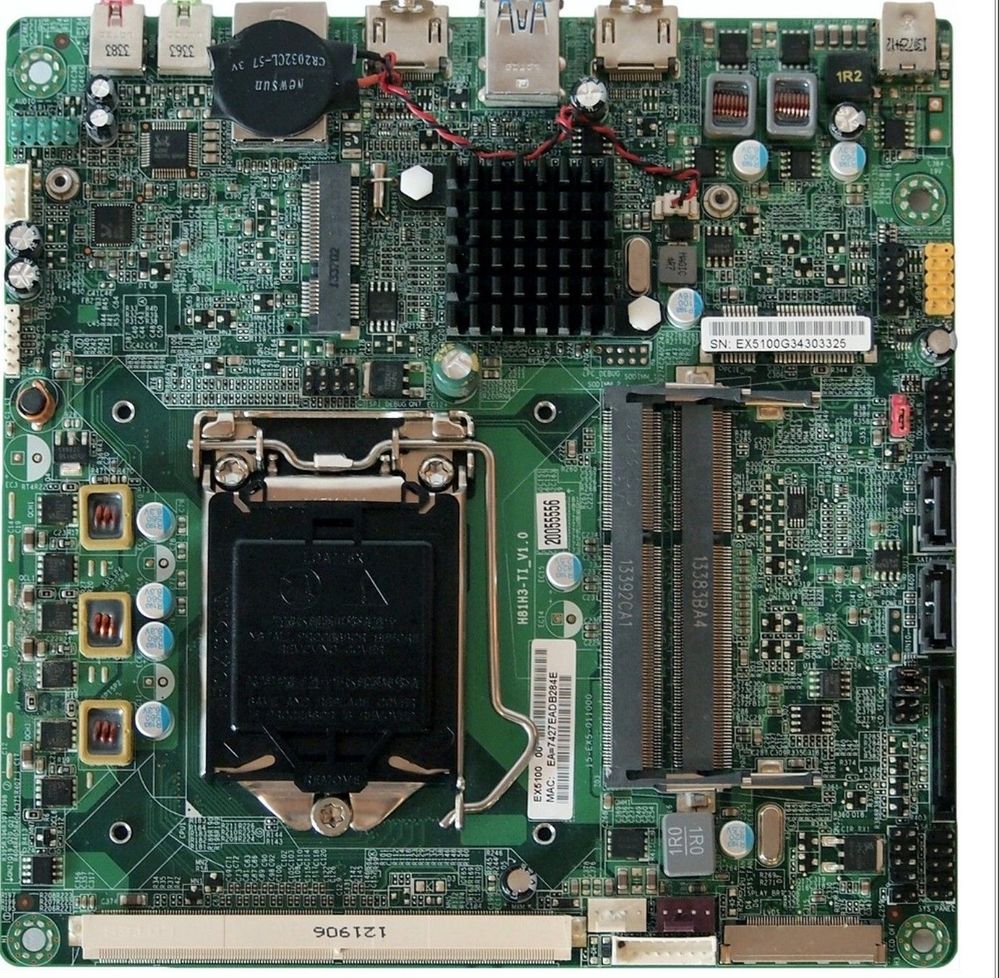

I bought the board on ebay, vendor included these images. One says it's from a Medion P2005DR, other seems to have an MSN of 20055556.

I think this sticker is missing on mine (the vendor was selling several), but my  board is the same. Description said "new boards removed from barebones systems".

But when I search on these I don't find any results.

Interested in latest BIOS and drivers. I do see on this site there is an updated BIOS for meltdown and spectre in the testing phase, would like an eta if possible.

[macminn]

I've also just realized there are numbers on the shield. EX5070 and 20055555.

[Luke]

Hi @macminn,

---

@macminn wrote:

I've also just realized there are numbers on the shield. EX5070 and 20055555.

---

These number are used by ECS only and not related to the AIO PC, sorry...

However, I did an internal database search for "ECS" and only found this one:

MEDION AKOYA P2004 AIO UK
MSN:	10017988
Vertriebsland:	GB
Hauptmerkmal:	All-in-One PC 23,0" PC System 8647.3 UK (MB ECS H61H2-TI2) AIO7
Prozessor:	CPU Intel Core i3-3220 3,30GHz
Hauptspeicher:	2x 2048 MB DDR3 SO-DIMM (PC3-12800/1600 MHz) 8 GB max.
BIOS/Chipsatz:	H61TIW08.1xx (BIOS) Intel BD82H61 SLJ4B B3 step
Display:	23,0" (58,4 cm) TFT Widescreen-Display Auflösung: 1920 x 1080 Pixel (16:9) Glare
Grafikkarte:	Intel® HD 2500 Grafik (onBoard) * Codename: Ivy Bridge * Pipelines: 16 - unified * Kerntakt : 650 - 1050 MHz * Shadertakt : 650 - 1050 MHz * Shared Memory: ja * DirectX: 11, Shader 5.0 * Herstellungsprozess: 22 nm * Features: QuickSync
Soundkarte:	Realtek ALC662 HDA 6 Channel Codec
Akku:	Lithium-Ionen-Akkumulator: n/a AC - DC Power Supply, 150 W (MSN 40040599) In: U~ = 100-240 V (50/60 Hz) Out: U_ = 19.5 V; 7.7A w/o I/O switch
Optisches Laufwerk:	DVDRW SAM SN-208BB
Festplatte:	HDD 1TB WD10EZRX-00A8LB0 S3 64MB
Netzwerk:	LAN (onBoard); 10/100/1000 Mbit; Realtek RTL8111E-VL WLAN Azure Wave AW-NE155H HalfSizeMiniCard
Software:	MS WIN 8 Std. 64-bit DVD ML S-DVD (PC) WIN8 306.14/8.982.6/AIO P2G
Komponenten:	WL Keyboard/Mouse/Receiver-Kit Sysgration AKM-028/AXM-919 UK

It`s not exactly the same board, but the closest I can get.

Drivers can be downloaded from our german website:

https://www.medion.com/de/service/start/_product.php?msn=10017859&gid=00

...just click on "Treiber" (Driver) and download & try the drivers offered there. I can`t assure this will work 100%, but it is the best I´ve found.

Cheers,

Luke

[Luke]

Addendum:

As this is an official ECS board, I also did a direct search on their website...  this one is the closest you`ll ever get:

http://www.ecs.com.tw/ECSWebSite/Product/Product_Overview.aspx?DetailID=1713&CategoryID=1&MenuID=172...

Luke

[macminn]

Well, I do appreciate you effort Luke. Obviously information on the H81H3-TI2 or H61H2-TI2 is not likely to be very useful. While it's possible that there may be some drivers in common with the H81H3-TI2 I certainly would not want to try a bios for a different board.

It seems odd to me that even though I have been able to find some evidence that this board is used in a Medion AIO machine, there is little or no support information to be found using any of the available tools.

So, I will continue to watch for the bios update for this board which I found on this site. And I think I have found somene on another site who actually owns one of these machines and may be able to help me.

Thanks

[Luke · Accepted solution]

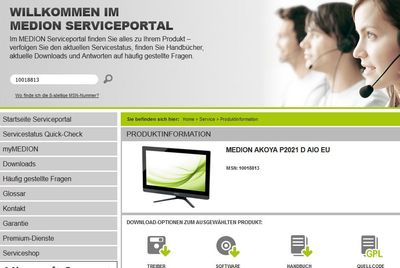

Hi @macminn,

we finally found the relevant unit:

MEDION AKOYA P2021 D AIO EU
MSN:	10018813
Vertriebsland:	EU
Hauptmerkmal:	All-in-One PC 23,6" PC System 8940 EU (MB ECS H81H3-TI) AIO9

Now go to our website https://www.medion.com/de/service/start/_product.php

and fill in the MSN 10018813, then click on "Treiber". That`s it.

*Uff*   :-)

Luke
