ECS H81H3-TI Information

SOLVED
Retired
Message 11 of 27
726 Views
Message 11 of 27
726 Views

Re: ECS H81H3-TI Information

Hey @gnomKOLIN,



I'm glad to hear that you've found it and thanks a lot for sharing it with the rest of the community!


Cheers!
SlamRam

MEDION AG - A Lenovo Company • • Community: community.medion.com

Please reward helpful posts with Kudos and mark solutions with Accept as solution.

Apprentice
Message 12 of 27
644 Views
Message 12 of 27
644 Views

Re: ECS H81H3-TI Information

UPD

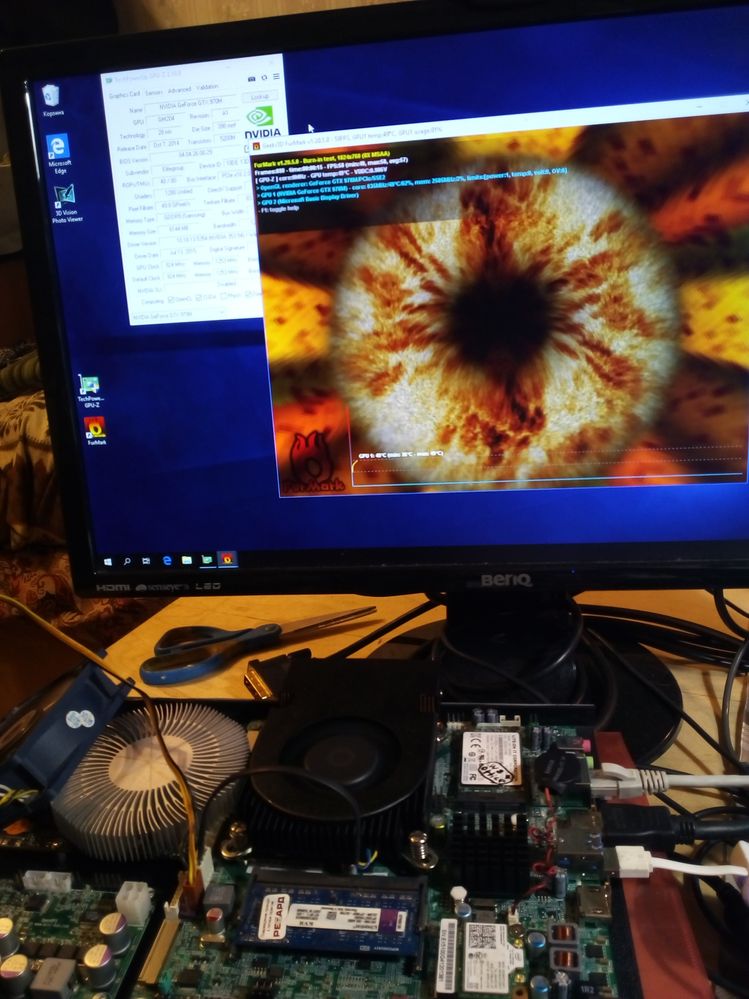

MXM slot works as PCI-e 2.0 x16 (not surprised cause H81 chipset). Its Power limit is at least 75w. I did tests with Quadro k610m (~30w) and Gtx 970m (~75w) . After few days of butthurt I made them work with furmark. The biggest trouble is to find compatible vbios, cause windows doesn't recognize original, which came with graphics cards (empty fields in GPU-Z and code 43 in device manager). I had to unlock system bios, and after few dozens of vbios reflashings and I found sort of compatible ones.



Now I can force graphics cards work with Furmark. But Optimus doesnt work, I think cause of incompatible drivers ("you are not currently using a display attached to an NVIDIA GPU"). May be cause of incompatible optimus module in system bios.

PS as said here https://community.medion.com/t5/FAQs/BIOS-updates-concerning-the-Meltdown-Spectre-vulnerability-for/... there is another system bios version for my motherboard. Hope someone could tell me when it will be avalible?



Scientist
Message 13 of 27
639 Views
Message 13 of 27
639 Views

Re: ECS H81H3-TI Information

Hello @gnomKOLIN



why are you making life so hard for you? A current Mainbaoard does not cost the world? You've been working on it for months. I would like to have your nerves Smiley Frustrated



Greeting Raymond


Apprentice
Message 14 of 27
628 Views
Message 14 of 27
628 Views

Re: ECS H81H3-TI Information

Hello @Raymond!

Cause this is very unique and interesting platform!

Have you ever seen  desktop board with MXM?  I know only few of them:  ZRT 11812, ASRock Z110M-STX (270 and 370), ZOTAC EN1070 (970-1080), Gigabyte BRIX. Clevo and MSI laptop's motherboards, and a lot of noname oem AIO motherboards like one I got!

To be honest total time I'm working on this motherboard is not much, most of time I've been looking for information (and still doing it), so my nerves are not as strong as you say =)

Scientist
Message 15 of 27
617 Views
Message 15 of 27
617 Views

Re: ECS H81H3-TI Information

Hello @gnomKOLIN



There are a few ways to make things. If you are satisfied, do your thing with the ECS H81H3-TI

Look in the links?



https://smallformfactor.net/forum/threads/monolith-laptop-by-colorzeppelin-24-screen-desktop-compone...



https://www.youtube.com/watch?v=GDyL2tPyXFA

Greeting Raymond




Scientist
Message 16 of 27
615 Views
Message 16 of 27
615 Views

Re: ECS H81H3-TI Information

Hello @gnomKOLIN



There are a few ways to make things. If you are satisfied, do your thing with the ECS H81H3-TI

I would go another way

Look in the links?



https://smallformfactor.net/forum/threads/monolith-laptop-by-colorzeppelin-24-screen-desktop-compone...



https://www.youtube.com/watch?v=GDyL2tPyXFA

Greeting Raymond




Apprentice
Message 17 of 27
591 Views
Message 17 of 27
591 Views

Re: ECS H81H3-TI Information

Hello @Raymond



He-he, You got me! Smiley Very Happy

Indeed I have plans to build a desktop computer in laptop formfactor (with LCD, battery and other features).

Main problem right now is to make dGpu (gtx 970m) work with board's optimus. Cause at this moment I can load dGpu only if I disable Intel HD in device manager (but still not in all apps). Nvidia control panel tells me that my screen is not connected to nvidia gpu. If I change display priority  in bios from Switchable Graphics to Pci-e I'm getting black screen (windows loads succesfull as I can see). May be cause wrong VBIOS, may be cause wrong drivers. May be if I connect lvds LCD as primary display - it will work fine cause MXM card has lvds tracks.

Highlighted
Scientist
Message 18 of 27
573 Views
Message 18 of 27
573 Views

Re: ECS H81H3-TI Information

Hello @gnomKOLIN



Wish you nice Easter holidays and much success in your project.

But I still think that an adapter would be the better solution for gaming

Please read the reviews



https://www.gearbest.com/EXP-GDC-_gear/?lkid=14908249



https://www.youtube.com/watch?time_continue=111&v=NdnafIWvuU4



Prost Raymond






Scientist
Message 19 of 27
556 Views
Message 19 of 27
556 Views

Re: ECS H81H3-TI Information

How to setup External GPU with Lenovo Laptop

Power without end ..Smiley Wink



edit



I had that recently, to set up, I'm already jealous ..

https://www.amazon.com/Dell-Alienware-15-R4-Festplatte/dp/B07D5TM1QK






Apprentice
Message 20 of 27
546 Views
Message 20 of 27
546 Views

Re: ECS H81H3-TI Information

Hello @Raymond!
As I can see , man in video disabled onboard dGpu to make laptop work with pci-e graphics card through integrated. I should try that! But Im still more interested in program part.
