P60 Deputy MD62588 Disassembly

[Stareyes]

Hi everyone,

I want to open my P60 to upgrade the ram and nvme ssd, I removed all 12 screws but the back won't move in any direction and I am stuck. How do I open the device?

[Polo111]

Hello, i've searched in the manual, and it's  marked that 1 nvm is gen3 and the second one is gen4.

i'm guessing the one who's already occupied with Phison 512GB ( right side, closer to memory and battery ) is the gen4 port ? and the other one is the gen3? someone can confirm  ? also i didn't found whats the maximum size for nvm i can install.

  thanks in advance

[Polo111]

@Stareyes there are 13 screws. i 've opened the case very easy :  start  left side, where the usb 3 ports are located.  use an old credit card to gently lift the zig-zag model. go all around and gently pull. the case will then open with ease.   the RAM and nvm will be immediately accessible. the second nvm doesn't have termal pad.

[Fishtown]

Hello @Polo111 ,
First, it says on the board itself:

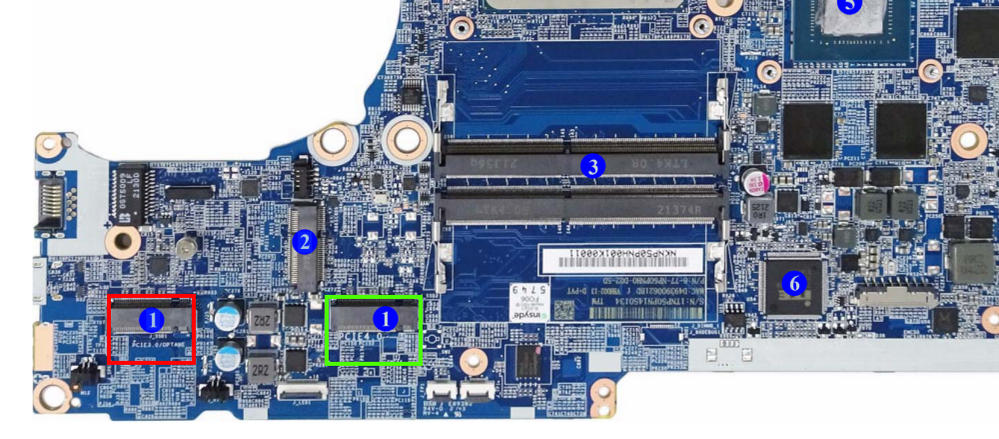

This is also listed in the spare parts diagram. It also says 1TB, so that's at least possible. You'll have to test whether more storage is possible.

Medion has sold the Deputy P60 model with an M.2 SSD PCIe in both 512GB and 1TB configurations;

both have a Gen 4x4 connection and should also be found on the right (closer to the storage).

bye Fishtown

[Polo111]

Hello again @Fishtown,

   thanks for your fast and helpful response.  seems the second emplacement is gen3 (the red one (13) ).

https://www.amazon.fr/stores/page/68E4C5AD-BEE0-4227-AB92-74911E2AC10D/search?ref_=ast_bln&terms=dep...

 seems 2 TB is also possible.  anyone tried with higher capacity ?

also in that link are the compatible memory banks

bye
